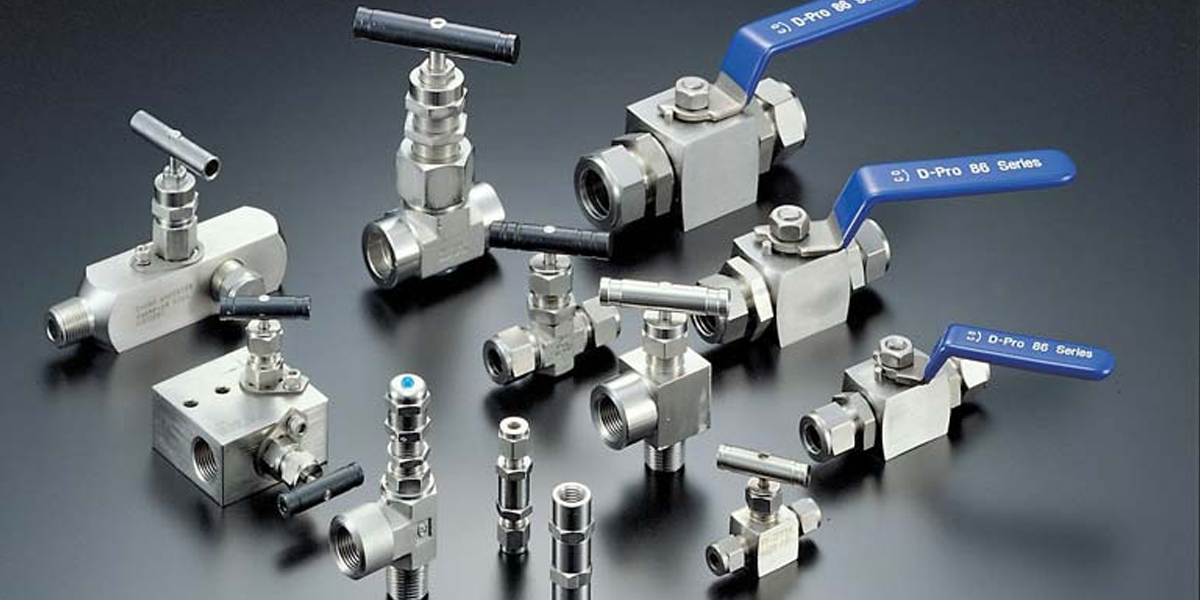

Valves
Regulating flow and pressure within a piping system. Controlling the direction of flow within a piping system. Throttling flow rates within a piping system. Improving safety through relieving pressure or vacuum in a piping system.

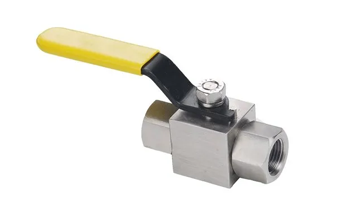

Square Ball Valve
They are typically used to connect a pipe or tube
to a female fitting or valve. The male connector has a male
thread on one end and a barbed end on the other that can be
inserted into a tube or hose. The male thread can be connected
to a female fitting, valve, or other types of connection.
| Valve Size | 1/8" TO 2" / 6 MM TO 50 MM |
| Shape | Square |
| Thread | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| Function | 2 WAY, 3 WAY, 4 WAY, 5 WAY, |
| Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI |
| ISO Certified | Yes |

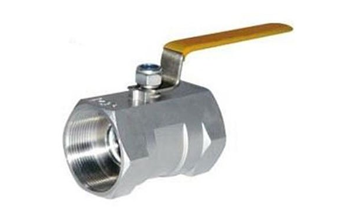

Ball Valve
A ball valve is a type of valve that uses a
hollow, pivoting ball to control the flow of a medium through
itself. If the hole of the ball is in line with the flow, the
valve is open, and it is closed when the valve handle has been
used to pivot the ball ninety degrees.
| Material | Stainless Steel |
| Steel Grade | 304 |
| Valve Size | 1/2" |
| Size | 1/2"-2" |
| Pipe Thread Size | 1/2 |
| ISO Certified | Yes |

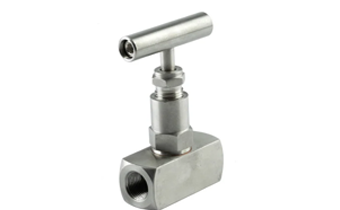

Needle Valves
A needle valve is used to accurately control flow
rates of clean gasses or liquids. Gradual adjustments of the
stem and plunger enable smooth flow control. These valves
generally have low flow rates and a relatively significant
pressure drop from the inlet to the outlet.
| Size Range | 1/4" to 1" |
| Material | Steel |
| Applicable Medium | Water, General Oil |
| Model | NVS-01, NVS-02, NVS-03, NVS-04, NVS-05 |
| Port Size | 1/8" |
| Media Pressure | 0 to 408 Bar |
| ISO Certified | Yes |

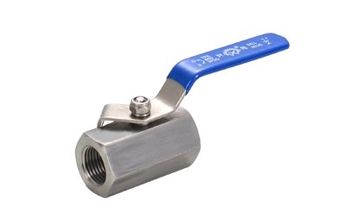

Hex Ball Valve
Instrument grade ball valves are primarily used as
a block valve for instruments, drain valves, on/off valves for
panel and systems, and many other applications and OEM
equipment. This cost effective line of ball valves offer several
pressure ratings, end connection options (upon request) and
sizes.
| Material | Mild Steel |
| Pressure | High Pressure |
| Size | 20mm |
| Media | Water |
| Temperature Range | 10-200 Degree C |
| Coating | Chrome |

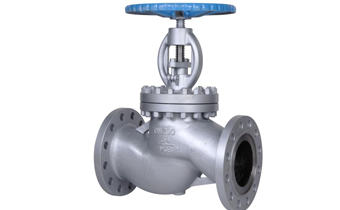

Globe Valve
Globe valve can be used for regulating flow or
pressures as well as complete shutoff of flow. It may also be
used sometime as a pressure relief valve or as a check valve.
Compared with a gate valve or ball valve, the globe valve has
considerably higher pressure loss in the fully open position.
| Power | Manual |
| Finish | Polished |
| Material | Stainless Steel |
| Media | Water, Oil, Gas |
| Testing Standard | ISO 5208 |
| Size | 15 mm to 600 mm |
| ISO Certified | Yes |
| Ends | Flanged End, Butt Weld End |

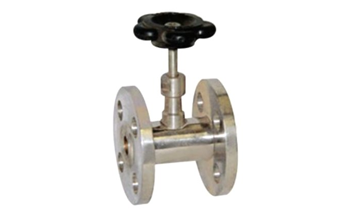

Flange End Needle Valve
It is used for joining two lengths of pipe
together that are not locked in place and can be turned. A union
is used when you are trying to join two pipes together that are
fixed, thus unable to be turned.
| Sizes | 1/8" TO 2" (3 mm to 50 mm) Max Pressure:pressure -150#, 300#,600# |
| Material of Construction | AISI 304 ,AISI-316(CF 8 M), AISI 316 L (A 351 CF3,CF3M ), GUN METAL, ALUMINIMUM BRONZE, HAST ALLOYS, CARBON STEEL,FORGED CARBON STEEL-A 105. |
| End Connections | ASA 150 CLASS,300 CLASS , 600 CLASS |
| Flanges End | FlANGED END ANSI B 16.5 RF, BS 1560 |
| Material | Stainless Steel |

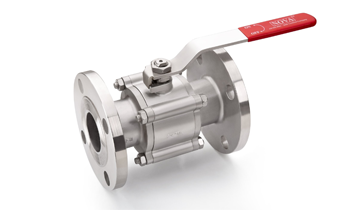

Flange End Ball Valve
A Flange end ball valve is a full bore ball valve
with a flanged connection. The usage of the flange end ball
valve is to allow or stop the flow in the pipeline system and
ensure the pressure within a pipeline system or process.
| Size | 1/2” to 6” |
| Material | Stainless Steel SS316 , Cast Steel |
| Working Pressure | 10kg/cm² |
| Connection Type | JIS 10K, PN10/16, ANSI 150# |
| Usage/Application | Water |
| Pressure | Medium Pressure |
3 Way Manifold R Type
3 Way R Type Manifold Valve has 3 openings 2
inlets, and 1 outlet. They can be used to mix fluids. It has
fewer connections which improves the layout and reduced their
chances of leakage. 3 Way T Type Manifold that is directly
mounted is less expensive and easy to maintain and install.
| Usage/Application | For Industrial Use |
| Pressure | Low Pressure, Medium Pressure, High Pressure |
| Valve Size | 1/2" , 1/4 " 1 " ETC |
| Model Name/Number | 3 WAY - R TYPE |
| Size | 1/2" , 1/4 " 1 " ETC |
Butterfly Valve
Butterfly valves are a family of quarter-turn
rotational motion valves that are used in pipelines to shut-off
flow. It is often said that butterfly valves can be used to
regulate the flow. However, we do not recommend doing this, as
it can damage the valve disk and have a negative effect on the
sealing properties.
| Valve Port Size | 4.0 inch |
| Valve Size | up to 4 inch |
| Material | Stainless Stee |
| Usage/Application | Liquid, water, bio pharma, chocolate. Milk |
| Pressure | Medium Pressure |
| Power | Manual |
Gate Valve
A gate valve is generally used to completely shut
off fluid flow or, in the fully open position, provide full flow
in a pipeline. Thus it is used either in the fully closed or
fully open positions. A gate valve consists of a valve body,
seat and disc, a spindle, gland, and a wheel for operating the
valve.
| Power | Manual |
| Finish | Polished |
| Material | Stainless Steel |
| Media | Water, Oil, Gas |
| Testing Standard | ISO 5208 |
| Size | 15 mm to 600 mm |
| ISO Certified | Yes |
| Ends | Flanged End, Butt Weld End |
