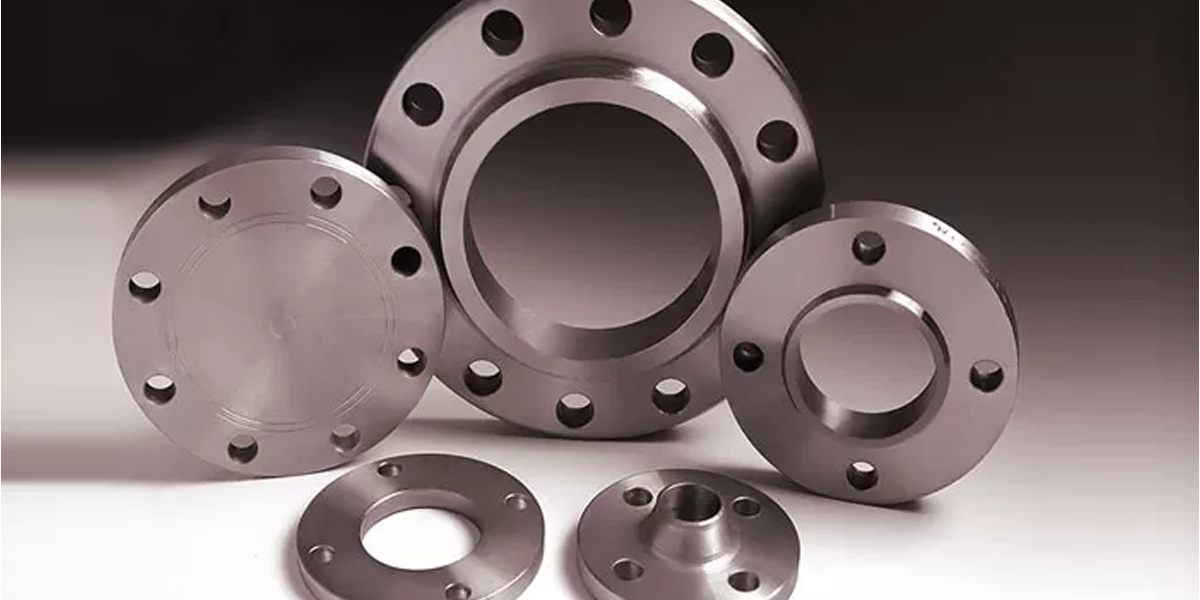

Flanges are used to connect pipes with each other, to valves, to fittings, and to specialty items such as strainers and pressure vessels. A cover plate can be connected to create a "blind flange". Flanges are joined by bolting, and sealing is often completed with the use of gaskets or other methods.

Weld Neck Flanges

A welding neck flange (also called a 'weld neck flange') is well recognised for its long-tapered hub, which provides mechanical strength (useful to resist 'dishing' and 'bowing'). Welding neck flanges are high integrity flanges and are available in all sizes, all common face types (flat, raised, RTJ), and all classes.


Size 0-1 inch, 1-5 inch, 5-10 inch, 10-20 inch, 20-30 inch, >30 inch
Material Stainless Steel
Finishing Bright,Polish
Material Grade Stainless Steel
Material Standard ASTM A182
Condition New


Threaded Flanges

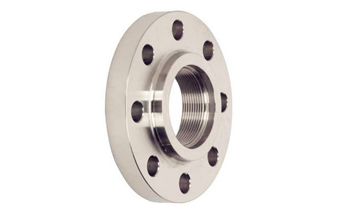

A threaded flange is a device that connects a device that you can secure to a pipe length without the need for welding. With tapered thread, the threaded flange can be tightened onto the pipe without any leakage.


Standard ASTM A105, ASTM A182
Material Carbon Steel, Stainless Steel, Alloy Steel
Size Range 1/2'', 1'', 2'', 3'', 4'' to 24'
Pressure Class Class 150 to 2500
Face Raised face (RF), Ring type joint (RTJ)
ISO Certified Yes


Socket Weld Flanges

Socket Weld Flanges: SW flangeshave a recessed shoulder on the inner diameter which allows the pipe to be fitted correctly. These fittings are typically used for small diameter pipes and can work at higher pressures, offering excellent flow characteristics.


Standard Carbon steel ASTM A105, ASTM A350 LF1/2, ASTM A181
Alloy steel ASTM A182 F5, F9, F11, F22, F91
Stainless steel ASTM A182 F304/L, F316/L
Outer Diameters 1/2 inch to 24 inch, up to 2500#
Special made 24'' to 60'', up to 900#
Wall Thickness Schedule 40 to 160
Pressure Ratings Class 150 to Class 2500
Face Type RF, RTJ
ISO Certified Yes


Slip On Flanges

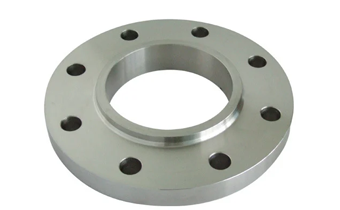

Slip on flange, also called SO flange. It's a kind of flange slides over the pipe with internal design is slightly larger than the pipe. Since the inner diameter of the flange is slightly larger than the outer diameter of the pipe, the SO flange can be directly connected to equipment or pipe by fillet weld at the top and bottom of the flange. It is used to insert the pipe into the inner hole of the flange.


Standard ASTM A105, ASTM A182
Material Carbon Steel, Alloy Steel, Stainless Steel
Size 1/2'' to 24'', customized up to 60''
Pressure Ratings Class 150 to Class 2500
Face Type RF, RTJ
Common outer diameters 1/2'', 2'', 3'', 4'', 6'', 8'', 10'', 12'', to 24”.
Class range Class 150, Class 300, 400, 600, 900, 1500, 2500(# or LB). PN 2.5 to PN 250.


Lap Joint Flanges

Lap joint flange (simplified as LTF flange) shape is similar to slip on flange, it has a curved radius at the bore, which can connect with a stub end fittings and slide over the pipe. In this form, the pipe is usually welded to this stub end so the lap joint flange can rotate freely around the stub end.


Material Carbon steel: ASTM A105, A350 LF2
Stainless steel: A182 F304/F304L/F316/F316L/F321
Alloy steel: ASTM A182, GR F1, F11, F22, F5, F9, F91
Dimensions Common Outer Diameters: 1/2'' to 24''
Wall Thickness Schedule: SCH 10, SCH 40, SCH 160
Standards ASTM A105, ASTM A350 LF2, ASTM A182 F11, F22, F304, F316
Testing Standard ISO 5208
ISO Certified Yes
Ends Flanged End


Blind Flanges

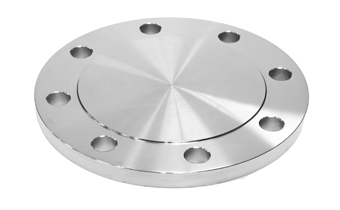

Blind flange is like a flange cover, also called blind disk or flanged pipe plug. Blind flange has no holes in the center, for to seal the pipe opening. So it's function is the same as the pipe plug or the pipe cap. The difference is blind flange is a detachable equipment, easy to replace or do maintenance.


Material Carbon, Alloy and Stainless Steel
Standards ASTM A105, ASTM A182.
Sizes 1/2'' to 24'', Customized up to 48''
Thickness Schedule 10(S) to SCH 160
Pressure Ratings Class 150 to 2500
Face Type RF, RTJ
Dimensions General use OD range: 1/2'', 2'', 3'', 4'', 6'', 8'', 10'', 12'', to 24”.
Special made OD: Up to 60”.
Class range: Class 150, Class 300, 400, 600, 900, 1500, 2500
Flange face type: RF (Raised Face), RTJ (Ring Type Joint)
